CFP 96

Cease Fire

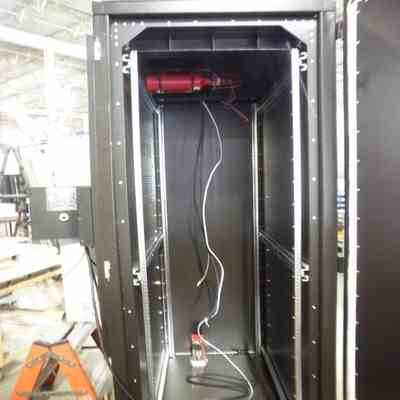

The CFP 96 is the vertically installed counterpart to the CFP 80LP.   It is designed to be installed vertically and protect any space that is 4'x4'x6' or smaller.  Ideal for cabinet enclosures, 3D printers, medical and science fume hoods, or any other small hard to reach location.  Our CF-33 dry chemical agent is non-corrosive, non-conductive & non-toxic, making it a safe option for nearly any application.

The Cease Fire® Unit is self-activating. Each unit is designed to initiate automatically by means of a sprinkler head rated at 155ºF (68ºC). The temperature rating for each sprinkler head is stamped on the star shaped deflector in both Fahrenheit and Celsius measurements. The temperature of the sprinkler head is fixed and must be designated at the time of purchase. When the temperature rise to activate the Cease Fire® unit, the sprinkler head opens automatically and dispenses the entire contents in less than 10 seconds onto the fire and throughout the enclosure being protected. If the unit is equipped with the optional pressure switch, a signal is sent at the time of discharge to activate accessory equipment, such as an alarm.



Get a Quote

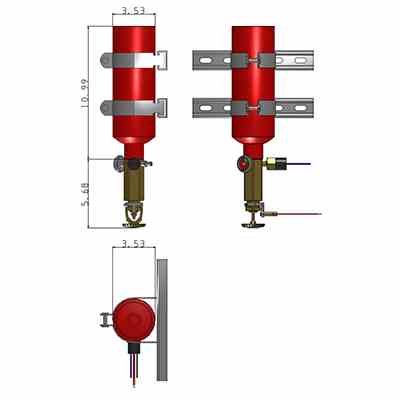

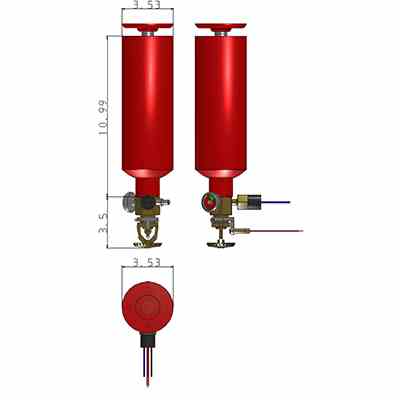

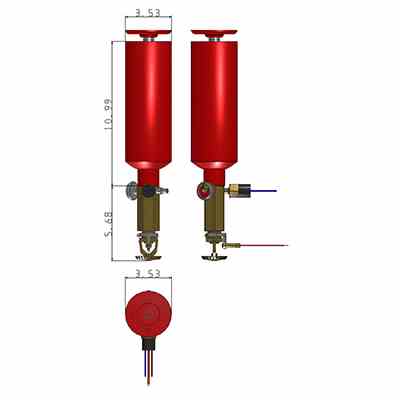

CAD Preview & Downloads
Wall Mounted 3D Preview & CAD
Extended Wall Mounted 3D Preview & CAD
Ceiling Mounted 3D Preview & CAD
Extended Ceiling Mounted 3D Preview & CAD
Downloadable Documents

Maximum Total Flood Volume4'x4'x6' = 96ft³ / 1.22mx1.22mx1.83m =
2.72m³
Reach Coverage Area 4'x4' = 16ft² / 1.22mx1.22m = 1.49m²
Temperature Rating -20°F to 120°F / -29°C to 49°C
Cylinder Worthington / Small DDI
Diameter 3.5" / 8.90cm
Height 10.5"+3.5" Coupling Assembly /
26.67cm+8.90cm
Capacity 1.7lbs / 0.77kg
Unit Weight 5.15lbs / 2.34kg
Ship Weight 10.2lbs / 4.64kg
Approvals UL, ULC, CSFM, NYC #5754
Propellant High Purity Compressed Dry Nitrogen
Standard System Activation: 155° Fahrenheit / 68.3° Celsius
