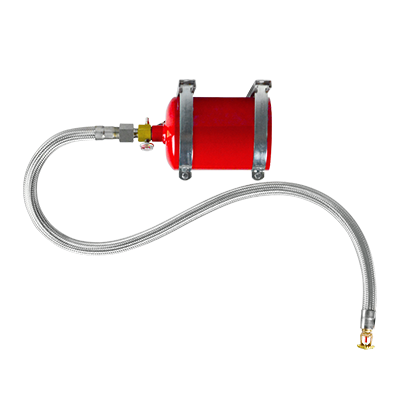

CFP 640LP

Cease Fire

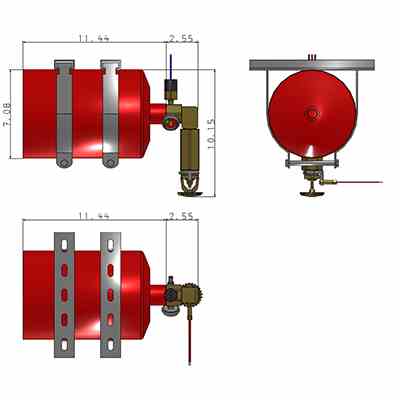

The CFP 640LP bridges the difficult gap between small spaces and mid-sized spaces.  It has all the same attributes as the CFP 640, but uses a low profile mounting system.  Designed to be installed horizontally, and to protect any space that is 8' x 8' x 9' or smaller.  Great for modular structures, portable shelters, storage rooms, quiet spaces, as well as spaces with height restrictions, challenges, or bottlenecks.  Our CF-33 dry chemical agent is non-corrosive, non-conductive & non-toxic, making it a safe option for nearly any application.



The Cease Fire® Unit is self-activating. Each unit is designed to initiate automatically by means of a sprinkler head rated at 155ºF (68ºC). The temperature rating for each sprinkler head is stamped on the star shaped deflector in both Fahrenheit and Celsius measurements. The temperature of the sprinkler head is fixed and must be designated at the time of purchase. When the temperature rise to activate the Cease Fire® unit, the sprinkler head opens automatically and dispenses the entire contents in less than 10 seconds onto the fire and throughout the enclosure being protected. If the unit is equipped with the optional pressure switch, a signal is sent at the time of discharge to activate accessory equipment, such as an alarm.



Get a Quote

3D Previews & CAD Downloads
3D Preview & CAD
Downloadable Documents

Maximum Total Flood Volume8.2'x8.2'x10' = 672.4ft³ / 2.49mx2.49mx3.05m
= 18.91m³
Reach Coverage Area 8.20'x8.20' = 64.24ft² / 2.5mx2.5m = 6.25m²
Temperature Rating -20°F to 120°F / -29°C to 49°C
Cylinder Worthington
Diameter 7.50" / 19.05cm
Length 11.38"+3.12" Coupling Assembly /
29cm+8.60cm
Capacity 7lbs / 3.18kg
Unit Weight 25.25lbs / 11.45kg
Ship Weight 29lbs / 13.15kg
Approvals UL, ULC, CSFM, NYC #5754
Propellant High Purity Compressed Dry Nitrogen
Standard System Activation: 155° Fahrenheit / 68.3° Celsius
