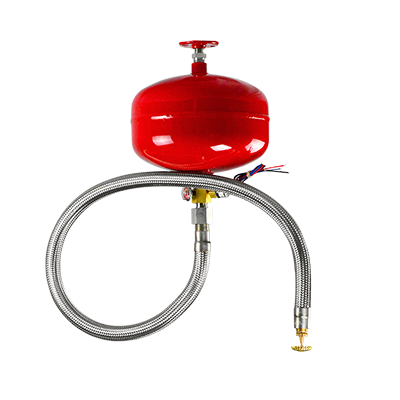

CFP 1700Cease Fire

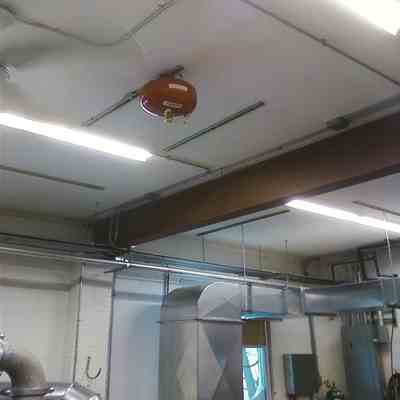

The CFP 1700 is a great, all-purpose, easy to install unit. The CFP 1700 addresses up to 11.50’x11.50’x13’. Offices, conference rooms, storage areas, grow rooms, industrial spaces, any space where there is a water restriction or lack of water capacity the CFP 1700 is used. Our CF-33 dry chemical agent is non-corrosive, non-conductive & non-toxic, making it a safe option for nearly any application.
The Cease Fire® Unit is self-activating. Each unit is designed to initiate automatically by means of a sprinkler head rated at 155ºF (68ºC). The temperature rating for each sprinkler head is stamped on the star shaped deflector in both Fahrenheit and Celsius measurements. The temperature of the sprinkler head is fixed and must be designated at the time of purchase. When the temperature rise to activate the Cease Fire® unit, the sprinkler head opens automatically and dispenses the entire contents in less than 10 seconds onto the fire and throughout the enclosure being protected. If the unit is equipped with the optional pressure switch, a signal is sent at the time of discharge to activate accessory equipment, such as an alarm.
Maximum Total Flood Volume11.5'x11.5'x13' = 1719ft³ / 3.5mx3.5mx3.96m =
Reach Coverage Area 11.5'x11.5' = 132.25ft² / 3.5mx3.5m = 12.25m²
Temperature Rating -20°F to 120°F / -29°C to 49°C
Cylinder Manchester 11#

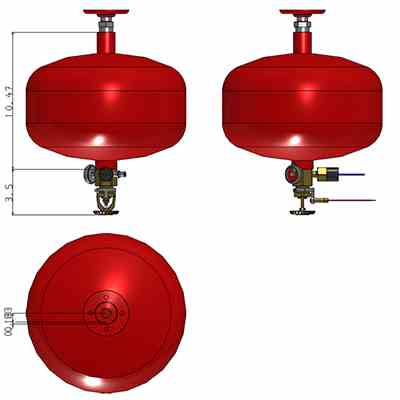

Diameter 12.25" / 31cm
Height 8.38"+3.50 Coupling Assembly /
Capacity 15lbs / 6.80kg
Unit Weight 29lbs / 13.15kg
Ship Weight 37lbs / 16.78kg
Approvals UL, ULC, CSFM, NYC #5754
Propellant High Purity Compressed Dry Nitrogen
Standard System Activation: 155° Fahrenheit / 68.3° Celsius
